Data collector

This tool is made to collect and plot sensor data from KUKA KR 3 R540 robotic arm. It collects the system vairables via a custom KRL submodule and trace data from the KUKA Trace module of the robot controler.

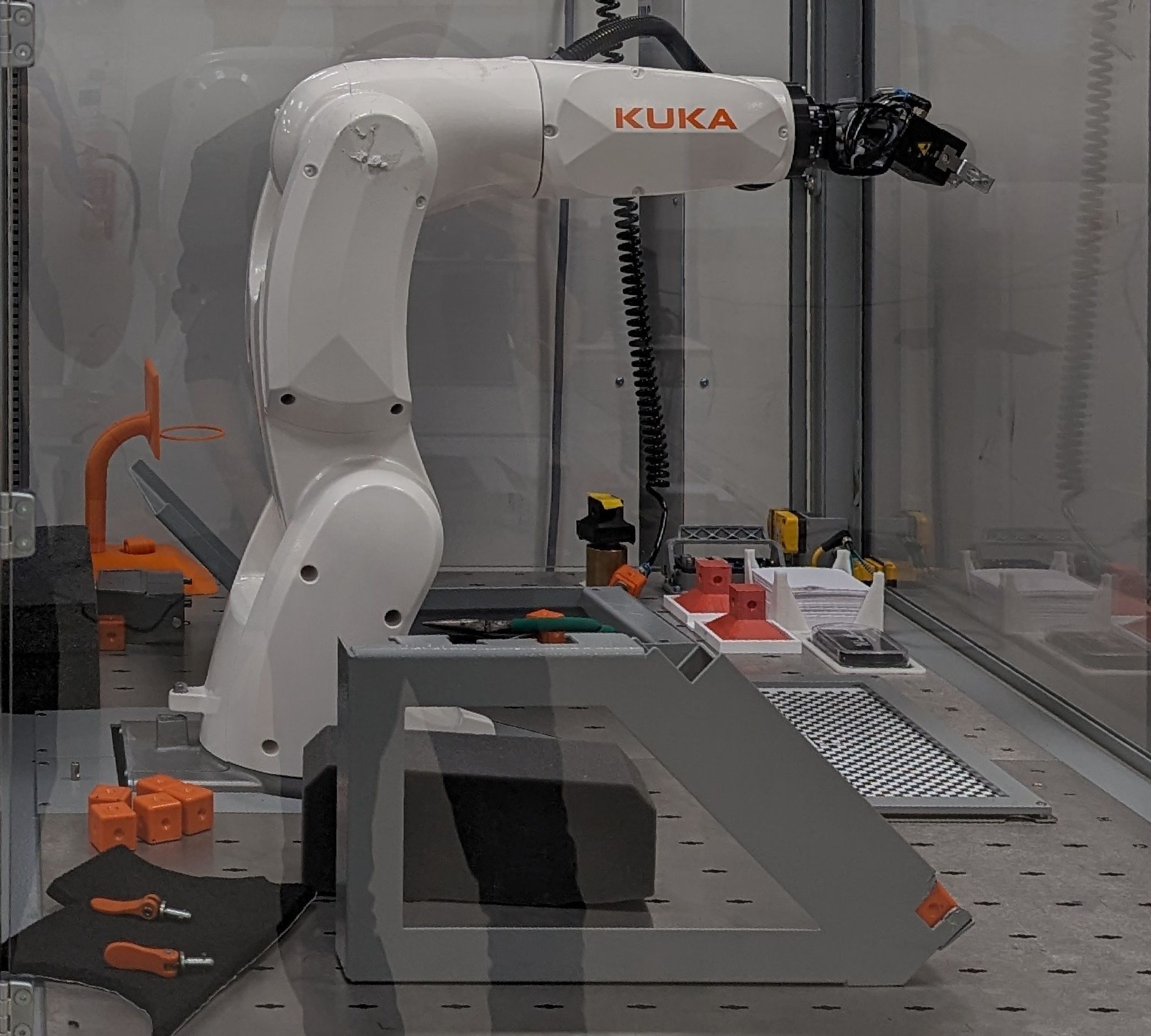

For the tests, we use three idetntical KUKA Cell with robotic arms, as one is shown here :

Robot Image

The robot is driven by a controler, that takes care of the power supply of each DC motor independantly, robot program, memory and security. A robot program is stored in a text format in .src file, associated with a .dat file for program data, each written in KRL programming language.

This tool uses a KRL submodule 'Data Collector' to store periodicly the values of intern variables into buffers, giving informations about the following variables for the 6 motors of the robotic arm:

  • Position
  • Torque
  • Current draw
  • Temperature

The buffers are global variables that can be accessed by Python, and are located in $config.dat file.

As the purpose of this tool is to make a diagnosis on the robot arm health, the robot program is a full-range motion on each axis of the robot. One motor iteration consists of a axis movement by a defined angle from the default position, on positive then negative side. Data analysis for diagnosis is curenly in developement.

This tool can collect the data in real time with system variables. The main latency factor is the network quality, so an ethernet connection is preffered over Wi-Fi. The data is buffered on the robot side but has a hard-coded limit of 20000 samples. The sampling rate has to be configured in accordance of the length of an acquisition and with the network connection quality. If the write index in the buffers reach the maximum value (size of the buffer), it will loop back to the begining of the buffer. Data from system variables is lost when the write index reach the read index

Besides the system variables, the robot controler can measure data via the KUKA traces of the robot. It is a way intended by KUKA to recover data from the robot, that can measure the folowwing variables :

  • Position : Command, measured, error
  • Velocity error
  • Torque
  • Temperature
  • Current

At the end of a measure sequence, the traces are recovered from the network and saved in local to be accessible. KUKA Traces data is in binary format (.r64), with .dat, .trc and .txt associated. Each motor has it's own file in that format, so Python will convert all the files and concatenate them to return a readable file, as excel or csv.

NB : Network access to the robot have to be setup before launching this program to be able to recover the traces.

The data collected by the program can be found in the /data folder, each data file having an explicit name with the date of the collection and details on the configuration. See an example below of the files naming format.

Example : [2024-05-17] 10h57 data [20%-60%] [36ms] [class 0] [10 10 10 10 10 10] - Robot 2

Format : [date] hour data [speed] [sampling rate] [load class] [number of iteration by axis] - N° of the robot

NB : The file obtained using KUKA Trace has a _TRACE suffix

Summary

Library requirements

This Python application uses multiple librairies that may not be in your default Python install package an are important:

  • PySimpleGUI 5.0.4+
  • Numpy 1.26.4+
  • Pandas 2.2.2+
  • Openpyxl 3.1.2+
  • Matplotlib 3.8.4+
  • optional : scipy, scikit-learn, seaborn for data processing

To install theses librairies, enter pip install <librairy_name> in the python terminal. Pysimplegui may be the more complicated to use on first time, because it demands a licence. To access the licence asking, install the librairy and lauch this application, and follow the steps on the licence request website.

Measure Sequence

One measure run consists of a succession of axis movement at a given speed. The numer of iterations by axis is variable and is defined by the user before launching the sequence. The speed of the robot can be modified to test the robot movement in diferent stress conditions.
As data is recovered in time, this data collector has a sampling rate. For the system variables, it varies from 12 to 60 milliseconds by a step of 12, the minimum of time the KRL program can measure from internal timers. KUKA traces provide a sampling rate from 1, 4 and 12ms, but oly the two last ones are implemented and working in this code. Traces time sampling is more reliable than global variables.

UI Description and details

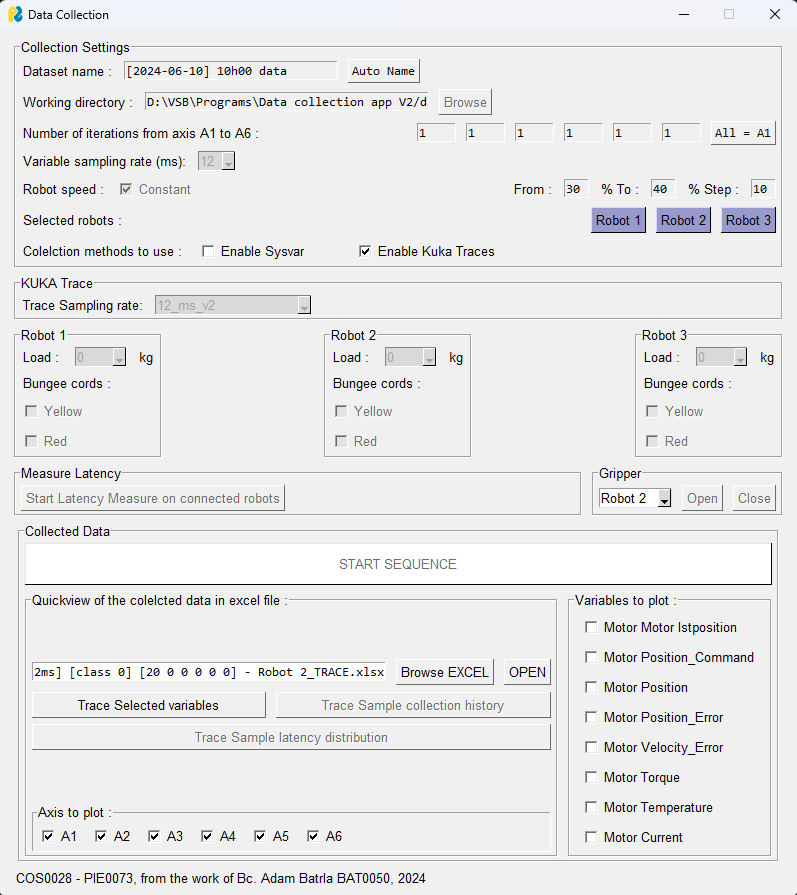

As shown on the image below, the User Interface is divided in 6 main functions.

GUI Screenshot

The PysimpleGUI librairy used in this application provide easy access to basic components of a gui, called widjets. For example, we can use buttons, keyboard input, checkboxes and combos. Combos are a way to give the user a visual choice on a variable. Note that all PysimpleGUI widjets give the possibility to run an action when an event occurs from it. Events are treated in the main loop of the program, and are defined as text by the programmer for each widjet.

As shown on the GUI, robot related functions are disabled on startup. To enable it, one of the robot has to be connected by clicking on the blue buttons followng "Connected Robots"in collection settings. If connection has succeed, it will apear green, red otherwise.

With multiple testings, we sometimes noticed connection difficulties with the robot cell 1. It can appear after a measure sequence or after a period of time doing nothing, so make sure the connection is not broken for this robot by clicking on the robot connection button. If connection problems occurs, C3 bridge on the cell has to be restarted by Minimizing HMI on the control panel (in settings). When Windows is showed, right click using a mouse on C3 on the right side of the task bar.

Collection settings

This section defines the configuration for the data acquisition.

The following parameters can be configured:

  • Number of movement iteration per axis
  • Sampling rate
  • Speed range for the test
  • Robot Load (only for data analysis)

The speed of the motors during the acquisition varies according to the confifuration. This value is defined as a percentage of the max value (i.e. 0 to 100), Note that limiting the value on the control panel will affect the resulting speed of the robot, as Python speed is a multiplicator of the one on the control panel.

By default, the 'Constant' checkbox is set to true. It means that the robot speed will be constant for the whole test and thus only one acquisition is made. By clicking on the checkbox, it allows the user to set a range of speeds for the test, from minimum to maximum by a step.

A test at multiple speed is equivalent to the data merge of multiple single speed runs. So, check the configurations before launching an acquisition, even if it is able to stop between the runs if a problem has occurred. The whole program will be stoped and all the windows will close if the button 'Abort' is clicked during a robot run.

During a measure sequence, system variables and KUKA traces can run at the same time to compare the data. If one of the collection method is prefered, we give the ability to chose which one is running with two checkboxes. By configurattion, Kuka trace running at 12ms sampling rate can't exceed 600 seconds of time (same with 4ms -> 200 seconds maximum). So to minimize data loss, we wait for both collection method to finish its process to start the next run, especialy on multiple speed runs.

KUKA traces

A combo selector is used to select the KUKA Trace configuration that will be run for data collection. The collected variables are the same as with the system variables but with more precision and reliability. The difference between the configurations 4_ms and 12_ms is in the smaple rate of the aquisition. Note that due to internal limitation, KUKA traces size cannot exceed 50000 samples. So, 12 ms sample rate collection is limited to 600 seconds, and 200 seconds at 4 ms. Time shouldn't be a worry for this application, as one axis movement sequence is stored in a single trace file. It just has to not exceed the time limit, that can be reached during a high number of axis iteration at low robot speed.

Robots loads

Curent kuka cell gripper tool on the robot enable the use of loads. Diferent weights of 500g, 1kg and 2kg are available as linear loads, as if the robot arm carry something. For more specific stress testing, two bungee cords are available to bring a non linear force in the robot movement. As other sections of the UI, a robot must be connected to enable load input. Load configuration entered by the user will apear in the dataset, coded in a numerical format. For details, see get_category() function in mainwindow class of the python program. Load entry on the gui is not automatic, so entry the right configuration corresponding to the test.

Latency test

Launch a latency test on the connected robots to print network timings Plots a graph of the latency versus time and distributions with histograms

Gripper commands

Command the gripper of the selected robot : open or close. This section is enabled when one robot is connected, and will do nothing if the selected robot is not connected

Collected data plot

Accessible without robot connection, this section plots data. First, a excel file containing data has to be selected with the Browse button, then OPEN. Variables available on robot axes will be shown as checkboxes in the frame 'varriables to plot' to give the user the choice to plot a unique variable. As variables provide data on each axis, each one of them can be disabled by unchecking the checkboxes 'Axis to plot'.

Program Structure

The code is organized in two main parts in two folders : kuka and ui

The kuka folder contains the classes to communicate with the robot controller and its varaiables. KUKA_Handler, herited from openshowvar, is responsible of the connection to the robot controler. KUKA_Reader contains all the functions to operate a data collection, as buffer readings and formating the result into a Pandas DataFrame.

The ui folder contains all the classes related to the user interface of the application. Python files with ui_ prefixes generate the frames shown in the main window. The main window is generated by the MainWindow class, and latency measurement and robot measurement are in Measure_latency and Measure_robot. The Measure_robot class contains the functions to execute a data collection, with the dynamic UI in CollectionGraphWindow, showing the robot data buffer state if system variable collection is enabled.

The main python file contains the main loop at the basis of the UI. It is done by a main class, and allows organization with class variables and class methods instead of global variables and functions.

KRL Submodule

This section describes how to deploy the data collection with system variables on a kuka cell. Kuka trace is by default implemented on the robot, making this tool more convenient to use on every robot.

Global variables

The following declarations must be added in the System/$config.dat file on the robot KUKA workspace :

;FOLD ------DIAGNOSTIKA GLOBAL PROMENNE-------
;Program control
DECL BOOL PyRUN=FALSE
DECL BOOL PyDONE=FALSE
DECL INT PySPEED=30
DECL INT PyITER[6]
DECL BOOL PyOPEN_GRIPPER=FALSE
DECL BOOL PyCLOSE_GRIPPER=FALSE
DECL INT PyKNUCKLE
DECL REAL SPEED

;Data collection control
DECL BOOL ColRUN=FALSE
DECL BOOL ColRESET=FALSE
DECL BOOL ColBUFFER_FULL=FALSE
DECL BOOL ColKEEPING_UP=FALSE
DECL BOOL ColRESET_DONE=TRUE
DECL INT ColSAMPLING=12
DECL INT ColBUFFER_SIZE=20000

;Data communication buffers and flags
DECL INT SAMPLE_READ=772
DECL INT SAMPLE_NUMBER=772
DECL REAL __TAB_1[36]

DECL INT __PYTHON_HAS_READ=771 ;
DECL BOOL __PyResetTimer=FALSE ;

;Data collection buffers
DECL REAL ColBUFFER_TQ_A1[20000]
DECL REAL ColBUFFER_TQ_A2[20000]
DECL REAL ColBUFFER_TQ_A3[20000]
DECL REAL ColBUFFER_TQ_A4[20000]
DECL REAL ColBUFFER_TQ_A5[20000]
DECL REAL ColBUFFER_TQ_A6[20000]
DECL REAL ColBUFFER_TEMP_A1[20000]
DECL REAL ColBUFFER_TEMP_A2[20000]
DECL REAL ColBUFFER_TEMP_A3[20000]
DECL REAL ColBUFFER_TEMP_A4[20000]
DECL REAL ColBUFFER_TEMP_A5[20000]
DECL REAL ColBUFFER_TEMP_A6[20000]
DECL REAL ColBUFFER_CURR_A1[20000]
DECL REAL ColBUFFER_CURR_A2[20000]
DECL REAL ColBUFFER_CURR_A3[20000]
DECL REAL ColBUFFER_CURR_A4[20000]
DECL REAL ColBUFFER_CURR_A5[20000]
DECL REAL ColBUFFER_CURR_A6[20000]
DECL REAL ColBUFFER_TIME[20000]
DECL REAL ColBUFFER_ANALOG[20000]

DECL E6AXIS __LAST_POS_ACT
DECL E6AXIS ColBUFFER_POS_ACT[20000]
DECL E6AXIS __LAST_POS_MEAS
DECL E6AXIS ColBUFFER_POS_MEAS[20000]
;ENDFOLD

Data_collector.sub

To allow data collection with system variables, please be sure to add the Data_collector.sub to the list of running submodules. This submodules takes up to 1 minute to properly initialize the first values of the internal data buffers, prenventing invalid memory writings during the run.

This progam can be found in robot/KRL/.

KUKA Trace Configuration

Copy the provided configuration files found in robot/configurations/ to the TRACE folder of the robot. Theses files will be needed to launch the trace collection method.

Example path : \\192.168.1.151\roboter\TRACE\

The Axis_Main.src program

The data collection uses the Axis_Main_dataset.src program to perform robot movement. It must be running in AUT mode at 100% of run speed on the control panel to produce valid data. On robot side, select the program for its run and press play button twice to run the initialisation and the main loop.

This progam can be found in robot/KRL/`.
